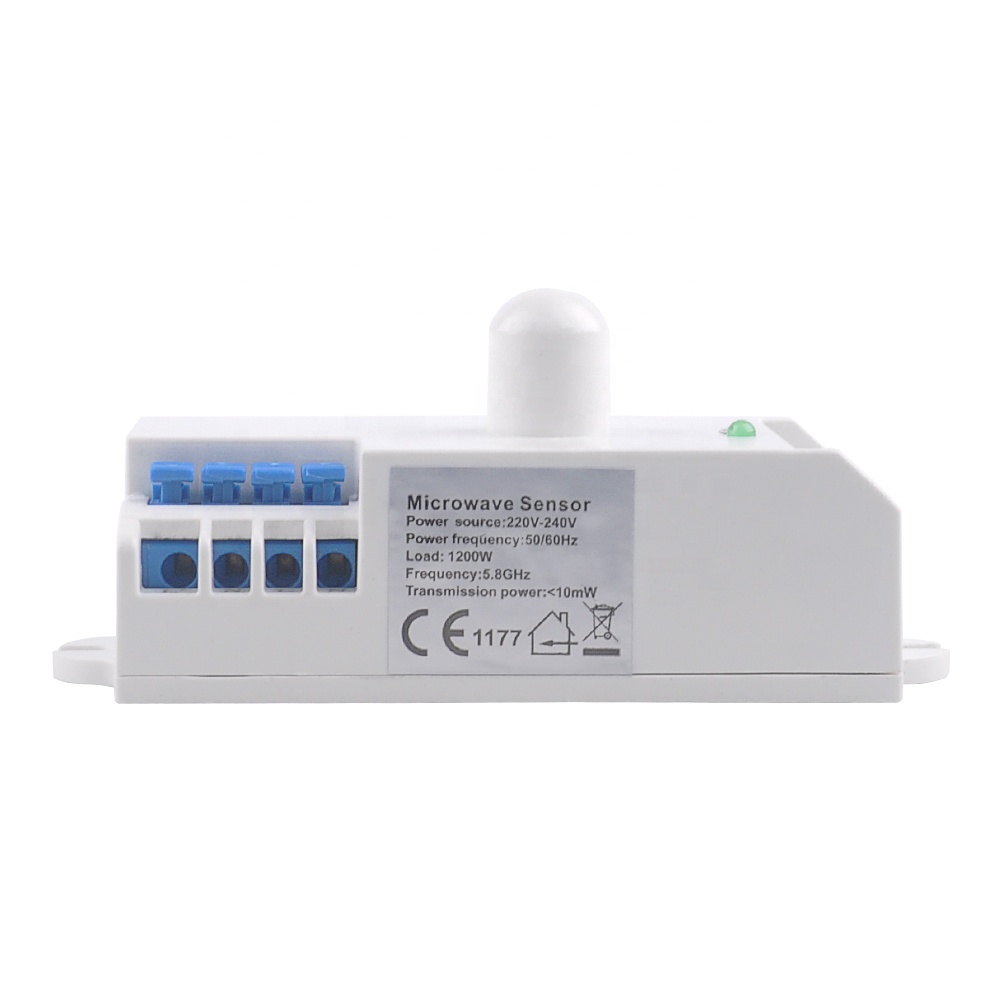

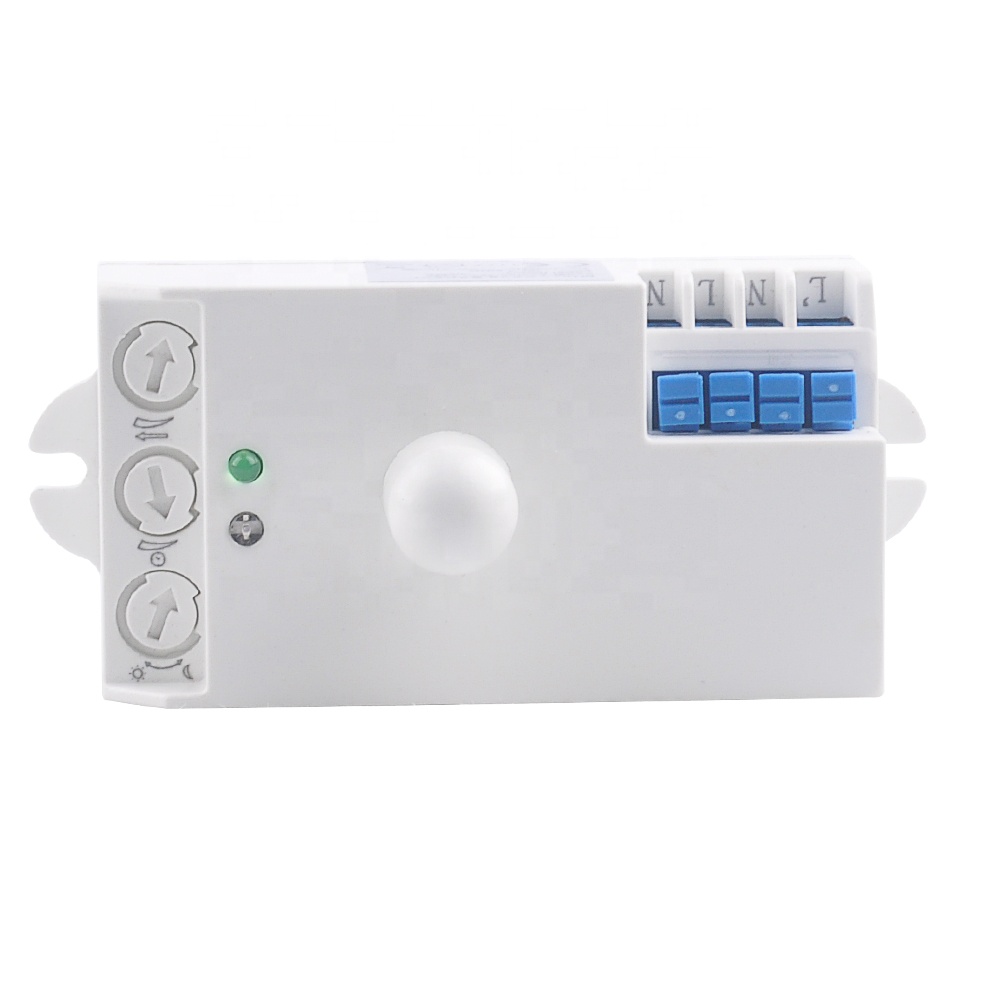

AC 110V 220V Motion Sensor Switch Ultrasonic Microwave Radar Detector 5.8GHz

Name: AC 110V 220V Motion Sensor Switch Ultrasonic Microwave Radar Detector 58GHz
Brand: Microwave Radar
Price: 5.5 USD

Brand Name : Microwave Radar

Model Number : MR-RD305

Certification : CE, RoHS

Place of Origin : China

MOQ : 100 pieces

Price : USD 5.5 per piece

Payment Terms : T/T, Western Union

Supply Ability : 1,000 pieces / day

Delivery Time : 5-8 work days

Packaging Details : Paper box and carton.

Input Voltage : AC110V / AC220V

Material : Polymer

Product Size : 90x41x38mm

Detection Range : 360° 2-10m(dia.),adjustable

HF System : 5.8GHz

Contact Now

AC110V 220v Rader Detector 5.8GHz Ultrasonic Microwave Motion Sensor Doppler Radar Sensor Switch

Product Paramenters

The sensor is an active motion detector, it emits high-frequency electro-magnetic wave ( 5.8GHz) and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the "switch light ON" command. Detection is possible through doors, panes of glass or thin walls
Important: persons or objects moving towards the sensor are detected best!

Product Specifications:

Model No.	MR-RD305
Power Sourcing	220V/AC-240V/AC 110V
Detection Range	360°
Detection Distance	1-8m (radius) adjustable
HF System	5.8GHz CW radar, ISM band
Ambient Light	2-2000LUX (Adjustable)
Time setting	8sec-12min
Transmission Power	<0.2mW
Power Consumption	0.9W
Installation sit	Indoors ,ceiling mounting
Rated Load	1200W (220-240VAC)
